Annaberg-Buchholz, Walcker&Cie/Eule organ 1884/1995 (HW5)

555,00
Beschrijving

!Alleen voor Hauptwerk 5 - For Hauptwerk 5 only!

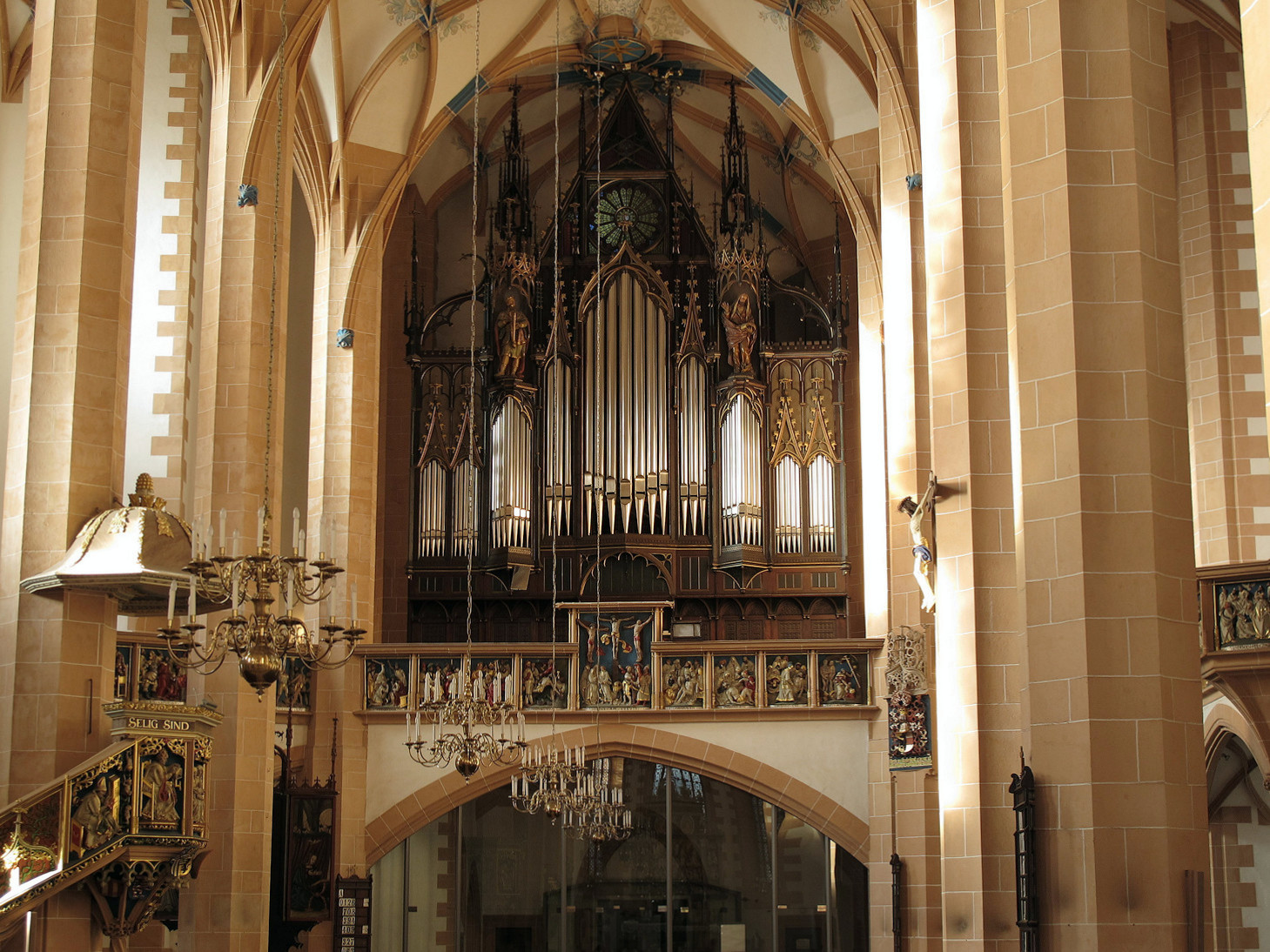

The 1884 E.F. Walcker organ (op. 424) of the St. Annenkirche in Annaberg-Buchholz in the Erzgebirge is along with Riga and Vienna one of the few almost completely original surviving Walcker organs of the High Romanticism.

The three-manual instrument originally had 56 stops (including 3 free reeds) and mechanical cone chests and is sonically the smaller sister of the Riga Cathedral organ, built in the same year. Only 10 years later, the organ was rebuilt with pneumatic action, widening of both sides of the façade with dummy pipes and enlarged with nine stops on new cone chests - according to the tastes of the time.

In the 1960s, the pneumatic system started to fail and in 1975 the organ was put out of service when restoration work started on the church. There was no money for basic repairs. Different variants for the reconstruction of the old organ as well as a complete dismantling of the organ were considered.

Fortunately, after lengthy discussions, the foresighted assessment by organ builder Eule gave the impulse to restore the instrument to its original state with its almost original preserved sound. In order to achieve the same touch on all three manuals, the organ received Barker levers for all the manuals as well as the stop controls. In addition, a register lock (a so-called Walcker stop prolongation) allows resetting stops while playing.

The instrument was enlarged with nine stops on the 1894 cone chests using Walcker scalings.

The excellent restoration and reconstruction of the instrument took place after the German reunification in 1992. It took Hermann Eule organ builders of Bautzen 29,000 man hours.

The re-inauguration of one of the most important and most beautiful instruments of the German High Romanticism took place on October 22, 1995.

Specification

Organ Temperament:  Equal (a1=432 Hz)

Manual I (C–f3)*

01. Principal 16'
02. Flauto major 16'
02. Quinte 5 1/3
04. Principal 8'
05. Gemshorn 8'
06. Bourdon 8'
07. Hohlflöte 8'
08. Doppelflöte 8'
09. Quintatön 8'
10. Viola di Gamba 8'
11. Dolce 8'
12. Octav 4'
13. Gemshorn 4'
14. Rohrflöte 4'
15. Quinte 2 2/3'
16. Oktav 2'
17. Mixtur 4' 6-fach
18. Cornett 4-5 fach
19. Mixtur 2'  6-fach
20. Fagott 16' (free reed)
21. Trompete 8'
22. Clairon 4'

Manual II (C–f3)*

01. Quintatön 16'
02. Principal  8'
03. Gedeckt  8'
04. Spitzflöte8'
05. Salicional  8'
06. Aeoline  8'
07. Voix celeste 8'
08. Octav 4'
09. Flauto dolce 4'
10. Viola 4'
11. Quinte 2 2/3'
12. Piccolo 2'
13. Superoctave 1'
14. Mixtur 4-5fach
15. Cymbal 2 2/3 3-fach
16. Oboe 8' (free reed)

Manual III (C–f3)*

01. Bourdon 16'
02. Geigenprincipal 8'
03. Lieblich Gedackt 8'
04. Concertflöte 8'
05. Harmonika 8'
06. Principal 4' (J)
07. Traversflöte 4'
08. Fugara 4'
09. Waldflöte 2'
10. Mixtur 4-fach
11. Harmonia aetheria 2 2/3  3-fach
12. Clarinette 8' (free reed)
13. Vox humana 8'

Pedal (C–d1)*

01. Principalbaß 32'
02. Principalbaß 16'
03. Violonbaß 16'
04. Subbass 16'
05. Bourdon douce 16'
06. Octavbaß 8'
07. Flötenbaß 8'
08. Octave  4'
09. Violoncello 8'
10. Mixtur 5 1/3'  6-fach
11. Posaune 32'
12. Posaune 16'
13. Trompete 8'
14. Clairon 4'

* extendable C-g3, C-f1

All ranks are original 1884 Walcker (voicing and pitch), except
(J): Jehmlich 1894 (III-Principal 4, P-Posaune 32', reworked by Eule)
and the 1995 added Eule stops (Walcker voicing)
